DFN2x2

Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Category
Back to list
1
资质文件 服务保障
Product description
Parameters

风华芯电

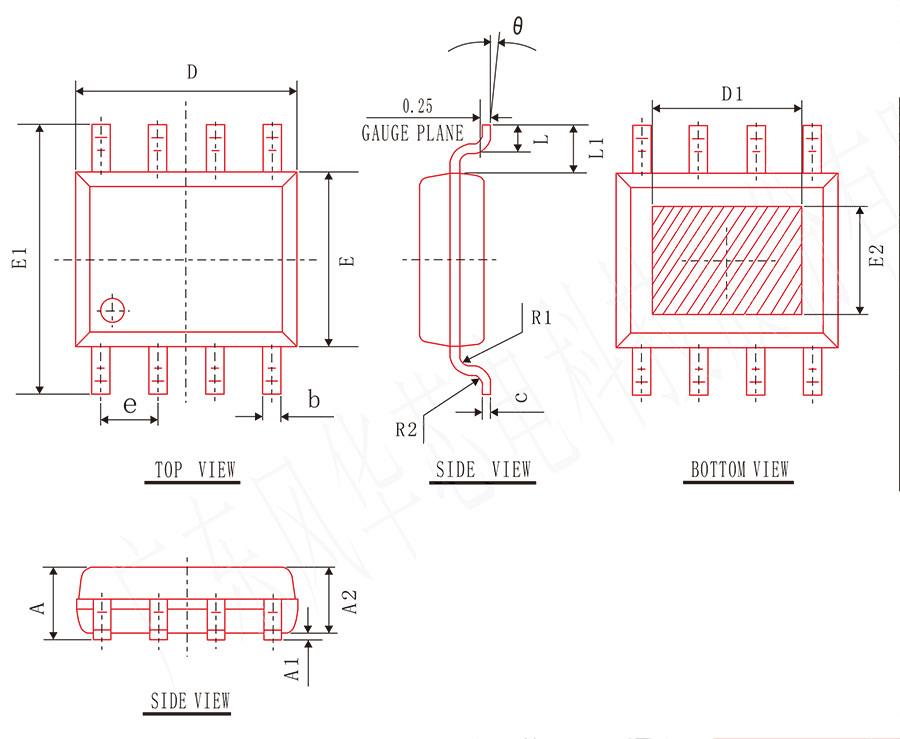

COMMON DIMENSIONS
(UNITS OF MEASURE=mm)
SYMBOL MIN NOM MAX
A 0.95 1.05 1.15
A1 0.00 0.05 0.10
A2 0.55 0.65 0.75
b 0.45 0.55 0.65
c 0.10 0.10 0.20
D 1.45 1.60 1.75
E 2.50 2.65 2.80
E1 3.50 3.65 3.80
L 0.20 0.30 0.40
θ 0° 3° 6°
